Naso-Flo®

Naso-Flo® Nasopharyngeal Airway Device

Naso-Flo product hero image

The Naso-Flo® nasopharyngeal airway device allows for direct oxygen delivery, while humidification vents positioned towards the distal tip facilitate heat and moisture transfer. It can also be supplied with an optional respiratory indicator with or without hydrophobic filter.

*Winner of EMS World Innovation Award 2014
*Journal of Emergency Services Hot Product Award Winner 2015

  • Manufactured from soft silicone reducing the risk of trauma during insertion
  • Colour-coded connectors to aid correct size selection
  • Delivers oxygen directly into the pharynx, reducing the anatomical dead space
  • Once the patient’s tidal volume has been exceeded, the upper airway becomes a natural reservoir for the remaining oxygen
  • Available with or without a Respiratory Indicator, which allows for detection of CO2 from the distal tip

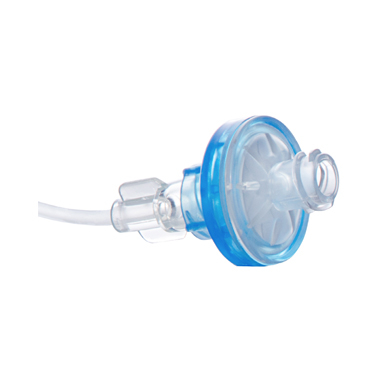

  • Optional hydrophobic filter (on versions with Respiratory Indicator), which reduces the risk of monitor contamination
  • Suitable for a wide range of clinical applications
  • Humidification vents and the physiological position improves the humidification of oxygen
  • Ventilation adaptor available for connection between Naso-Flo® and breathing system
  • Cost effective - Reduces the need for an oxygen mask with the additional benefit of improving the visibility of the patients oral cavity
  • MRI Compatible
  • Single Use single use icon
  • Latex Free latex free icon

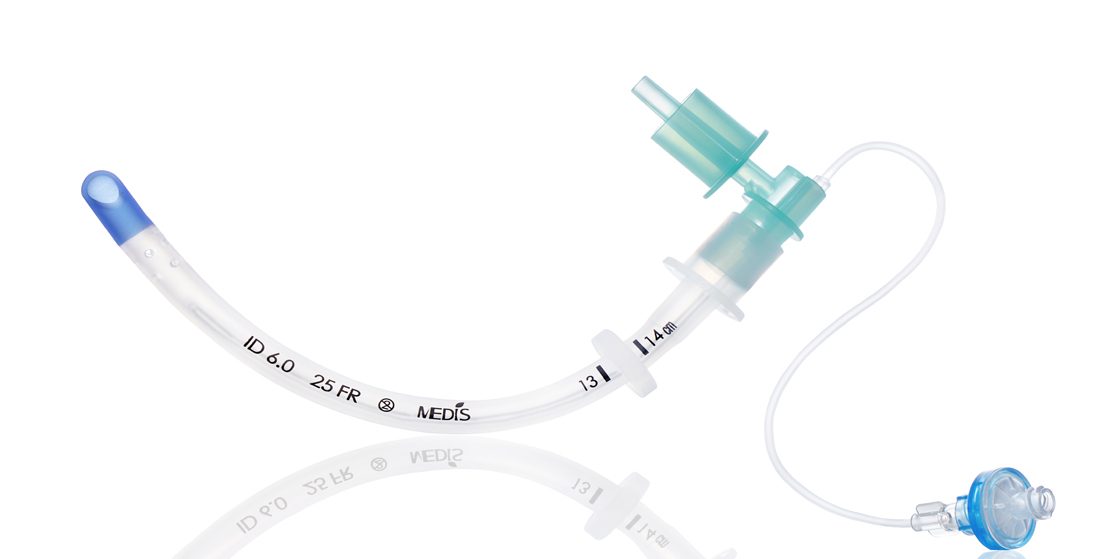

Naso-Flo product image close up - https://www.medis-medical.com/product-images/feature-nasoflo.jpg

Ventilation Adaptor

Ordering Information

Adult

With O2 Port, Soft Tip and 15mm Connector

SizeCodeBox Qty
3.0mm NF103 10
3.5mm NF1035 10
4.0mm NF104 10
5.0mm NF105 10
6.0mm NF106 10
7.0mm NF107 10
8.0mm NF108 10
9.0mm NF109 10
With O2 Port, Respiratory Indicator-without Filter, Soft Tip and 15mm Connector
SizeCodeBox Qty
3.0mm NF303 10
3.5mm NF3035 10
4.0mm NF304 10
5.0mm NF305 10
6.0mm NF306 10
7.0mm NF307 10
8.0mm NF308 10
9.0mm NF309 10
With O2 Port, Adjustable, Soft tip and 15mm Connector

SizeCodeBox Qty
4.0mm NF114 10
5.0mm NF115 10
6.0mm NF116 10
7.0mm NF117 10
8.0mm NF118 10
9.0mm NF119 10
With O2 Port and Respiratory Indicator-without filter, Adjustable, Soft Tip and 15mm Connector
SizeCodeBox Qty
4.0mm NF314 10
5.0mm NF315 10
6.0mm NF316 10
7.0mm NF317 10
8.0mm NF318 10
9.0mm NF319 10
With O2 Port, Respiratory Indicator, Filter, Soft Tip and 15mm Connector
SizeCodeBox Qty
3.0mm NF203 10
3.5mm NF2035 10
4.0mm NF204 10
5.0mm NF205 10
6.0mm NF206 10
7.0mm NF207 10
8.0mm NF208 10
9.0mm NF209 10
With O2 Port, Respiratory Indicator, Filter, Orange connector, Soft Tip and 15mm Connector
SizeCodeBox Qty
3.0mm NF403 10
3.5mm NF4035 10
4.0mm NF404 10
5.0mm NF405 10
6.0mm NF406 10
7.0mm NF407 10
8.0mm NF408 10
9.0mm NF409 10
With O2 Port, Respiratory Indicator, Filter, Adjustable, Soft Tip and 15mm Connector
SizeCodeBox Qty
4.0mm NF214 10
5.0mm NF215 10
6.0mm NF216 10
7.0mm NF217 10
8.0mm NF218 10
9.0mm NF219 10
With O2 Port, Respiratory Indicator, Filter, Orange connector, Adjustable, Soft Tip and 15mm Connector
SizeCodeBox Qty
4.0mm NF414 10
5.0mm NF415 10
6.0mm NF416 10
7.0mm NF417 10
8.0mm NF418 10
9.0mm NF419 10
Ventilation Adaptor
SizeCodeBox Qty
15mm NF400 50

For more information on our products and services, or to request a sample please contact us:
t: +86-22-83963862 e: info@medis-medical.com or via our online enquiry form.
